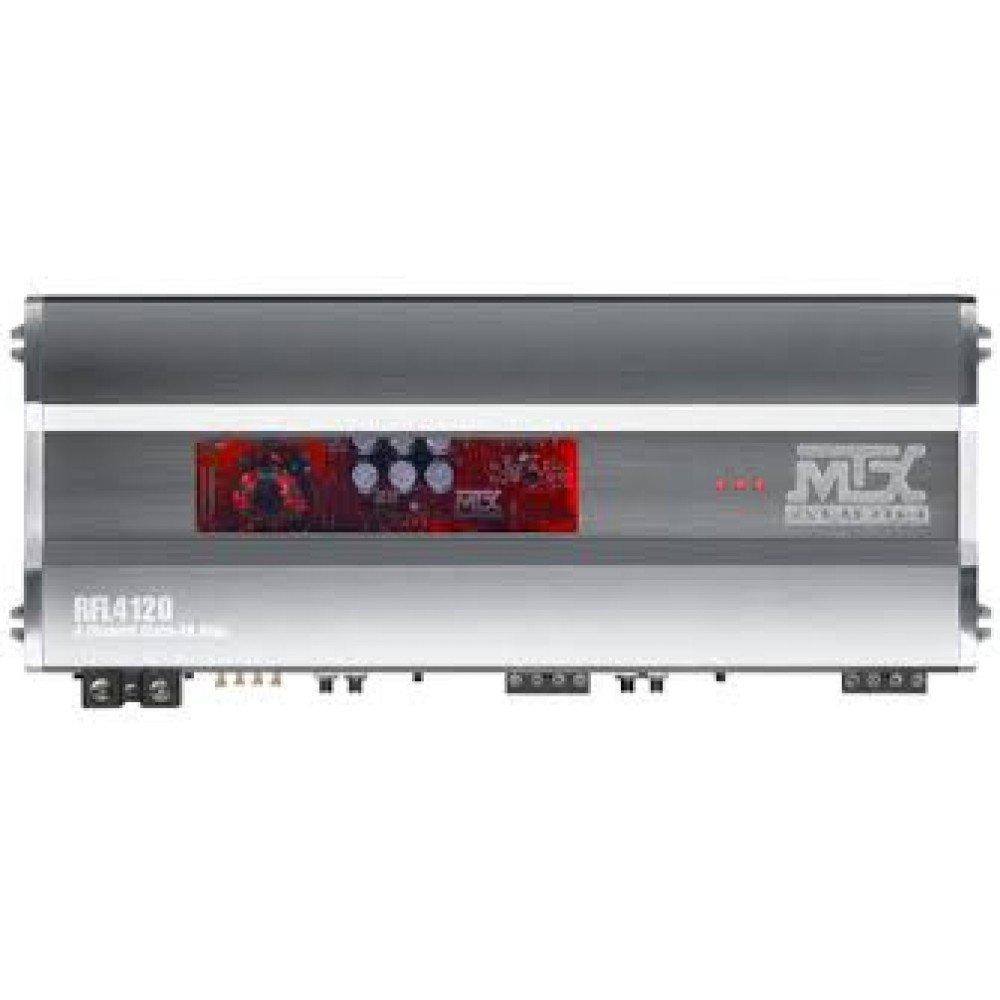

MTX RFL4120 4-Channel Amplifier

 Specifications RFL4120 4-Channel Amplifier

• Class AB 4Channel Amplifier
• CEA2006 Certified Output Power:
- 4x200 Watts RMS @ 2Ω THD+N ≤1%
- 4x120 Watts RMS @ 4Ω THD+N ≤1%
- 2x400 Watts RMS bridged @ 4Ω THD+N ≤1%
• Active Crossover :
- High-Pass (HPF) 12dB/oct Variable from 40Hz-5000Hz
- Low-Pass (LPF) 24dB/oct Variable from 40Hz-5000Hz
- Band-Pass (BPF) 12dB-24dB/oct Variable from 40Hz-5000Hz
• Signal/Noise Ratio (1 Watt) : >98dB
• THD+Noise (Distortion) (1 Watt) : ≤ 0.05%
• Frequency Response (±1dB) : 10Hz-90000Hz
• RCA input sensitivity : 200mV - 6V
• Dimensions : 525mm x 204mm x 59mm
