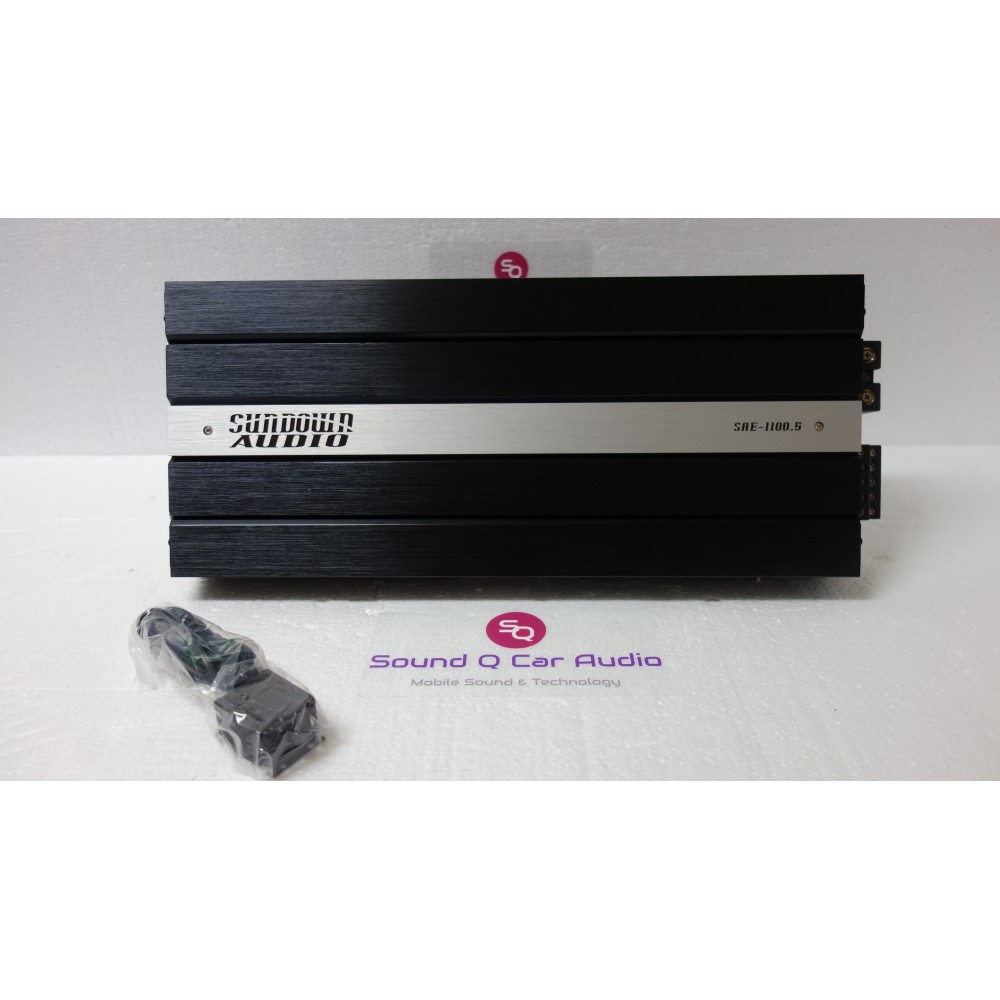

Sundown Audio SAE-1100.5 5-Channel Multi-Channel Amplifier OUT OF STOCK!
$750.00
Product Code: SAE-1100.5
Stock In Stock
Viewed 4604 times
Share This
Product Description
Features:
- Full Range Class A/B Digital Monoblock
- High Efficiency Multi-Channel Design
- Stable-2 Ohm Stereo / 4 Ohm Bridge (1-4CH) 1-Ohm (5Ch)
- Power/Protected LED Indicators
- 12dB/Oct Variable High Pass Filter (4Ch)
- 12dB/Oct Variable Low Pass Filter (3-4 Ch)
- 24dB/Oct Variable Low Pass Filter (5 Ch)
- Variable Bass Boost (5 Ch)
- 4-Way Protection Circuit (Thermal, Voltage Speakers Short and DC
Offset)
- Wired Remote Control (5 Ch)
Specifications:
- Power Handling:
- RMS Power 4-Ohm Bridge: 240W x 2 (1-4Ch)
- RMS Power 1-Ohm: 800W x 1 (5 Ch)
- RMS Power 2-Ohm: 120W x 4 (1-4 Ch) + 500W x 1 (5
Ch)
- RMS Power 4-Ohm: 75W x 4 (1-4 Ch) + 300W x 1 (5
Ch)
- High Pass Frequency Crossover: 50Hz-250Hz (1-4 Ch)
- Low Pass Frequency Crossover: 50Hz-250Hz (3-4 Ch) / 30Hz-150Hz (5
Ch)
- Frequency Response: 20Hz-20KHz (1-4 Ch) / 10Hz-150Hz (5 Ch)
- Bass Boost - 45Hz: 0-12 dB
- Phase Shift Control: 0-180 Degree
- Input Sensitivity: 6-0.2 Volts
- Signal Noise Ratio: >90dB
- T.H.D. 4-Ohm: <0.5%
- Efficiency 4-Ohms: 65% (1-4) / 86% (5 Ch)
- Recommended Fuse Rating: External 150A
- Dimension: 8.5” W x 2.3” H x 21” L
- Weight: 6.6kgs
